IS 10733 Tube: Specially compounded oil resistant synthetic rubber Reinforcement: High tensile synthetic piles with helix steel wire and a copper wire Cover: Black smooth fabric mark NBR rubber compound resistance to oil, fuel, weather & ozone & abrasion Properties: Seamless, Uniform Thickness, Flexible, Very Strong Standard length: 20 mtr and 40 mtr Temperature Range: -26°C to +85°C Approx

IS:3549 /1983 Type 2 Application: For dewatering and delivery purposes during reflooding, handling for waste water, sewerage and mud at maximum working pressure of 0.7,1.0 and 1.5 MPa. TYPE: Hose having smooth bore. LINING: Natural/Synthetic/blend rubber compound lining for the water and abrasion resistance. REINFORCEMENT: Reinforcement for the rubber bias at approx. 45" angle combination impregnated woven textile applied on with galvanized steel wire. COVER: Corrugated cloth marked finish outer cover made from natural rubber compound resistance to water, sunlight, UV rays, ozone, abrasion etc. PRESSURE: W.P. of 0.7MPa & min. B.P. of 2.1 MPa., W.P. of 1.0 MPa. & min. B.P. of 3.0 MPa., W.P. of 1.5 MPa & min. B.P. of 4.5 MPa. W.P. : Working Pressure, P.P. : Proof Pressure, B.P. : Burst Pressure, 1MPa : 10.2Kgf/Cm2 1Kgf/Cm2:100KN/m2

Core: White color, Synthetic rubber with XLPE liner Reinforcement: High Tensile Synthetic Textile Cord with steel helix and 2 cross anti-static wire Cover: Green color EPDM, wrapped type, abrasion and weather resistant Application: Excellent in handling petroleum based products, hydrocarbon solvents, oxidizing chemicals, major strong acid and alkali as well as organic fluid etc. Temperature Range: Continuous: -20°C to +120°C

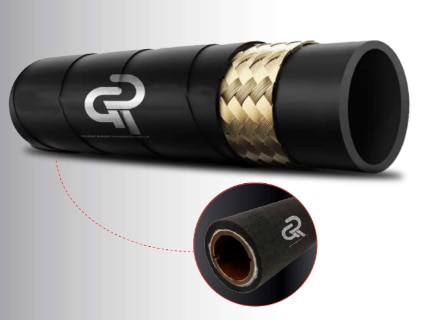

Tube: Abrasion resistant, anti-static modified natural & synthetic rubber blend. Reinforcement: Two braids of high tensile synthetic yarn with antistatic, copper flex wire. Cover: Excellent weather & abrasion resistant modified natural rubber black. Temperature Range: -30°C to +70 °C

As Per IS: 5137:1990 Lining: uniform seamless and extra thick tube of natural/synthetic/blend rubber compound of excellent abrasion resistance and free from air blisters, porosity and other defects. Reinforcement: Plies of rubber impregnated woven textiles or braided high strength natural/synthetic yarns. Cover: Suitable rubber compound with cloth marked finish, resistant to abrasion and weather. Electrical Bonding: A strand of copper wire is embedded between the reinforcement plies to provide electrical continuity throughout the length of the hose. Pressure: W.P. of 10 MPa & min. B.P. 4.0 MPa Temperature Range: 20°C t +80°C

Tube: Specially compounded abrasion resistant natural rubber, high resilient, Black colour. Reinforcement: High tensile synthetic plies with helix wire and copper wire. Cover: Black abrasion resistant natural rubber cover, Wrap finish. Applications: For suction and discharge of bulk material like cement, gravel and sand etc. in construction industry Properties: High abrasion resistance, Seamless, Uniform Thickness, FIXFLEX FLY ASH, Flexible Temperature Range: -40°C to +70°C Approx

Tube: White EPDM with UHMWPE Lining (Food Grade) Reinforcement: High Tensile synthetic piles with helical wire Cover: Blue, EPDM Weather, ozone and abrasion resistant Standard colour: Inner tube- white, translucent lining Outer cover - blue Temperature Range: -30 °C Approx to +120 °C approx

Tube: Specially Compounded Synthetic Rubber, Black Reinforcement: High Strength Synthetic Plies with helix wire Cover: Black synthetic rubber cover Application: For suction & discharge of Crude oil, mild chemicals, petroleum waste, sediments, sludge, slurries & water in oil field waste recovery, tank truck & general industry Properties: Seamless | Uniform Thickness | Flexible | Very Strong Standard Color: Inner Tube - Black | Outer Cover - Black Temperature Range: -20°C Approx to +85°C Approx

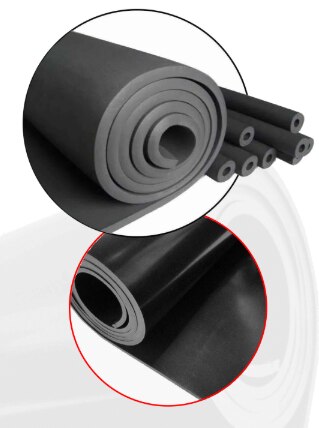

Natural rubber sheets or poly-isoprene rubber sheet is the most widely used rubber sheet for almost all general and most dynamic applications. In some areas, NR is compounded with SBR to increase the temperature resistance of natural rubber sheet. Colors: Black/white/beige/any other color Main Properties: It offers excellent mechanical properties like high resilience, low compression set, high resistance to cut, tear and abrasion etc. NR also has excellent electrical properties. Natural rubber sheets also offer resistance to many acids, alkalis and salts. Main Limitations : Bad resistance to oil and organic fluid.

EPDM rubber sheet is special application sheet and proved its suitability in numerous of areas. It has very good weather proof quality that makes the best choice for the outdoor use. Main properties: EPDM rubber sheet has the properties like high resistivity to steam, water, aging, ozone, oxidation, impermeable to gas, acid proof, good resistance to many chemicals and solvents including may corrosive chemicals. These types of rubber sheets remain stable for long periods of time due to its inert structure. Main limitations: Bad resistance to oil, moderate compression set etc.

Nitrile rubber sheets are generally popular as Oil resistance rubber sheets as these shows very good resistance to petroleum based products. NBR rubber sheets are produced in accordance with BS 2751 standard. Main Properties: NBR rubber sheets offers excellent properties like impermeability to gases, resistance to inorganic chemicals, high resistivity to all petroleum products, high temperature resistance etc. Main Limitations: Bad resistance to anti-oxidant agents, chlorines, moderate mechanical strength comparing to NR, moderate weather resistance.

Silicone rubber due to its inert nature is the most preferred choice for Medical, pharmaceutical and food industry. Colors: White/Red. Main Properties: Silicone rubber sheet has the excellent outstanding resistance to oxidation, ozone and weathering. It stays constant at high temperatures and maintains flexibility at even very low temperature. Main Limitations: Bad fuel resistance & Poor physical strength and bad tear and abrasion resistance.
