CHEMICAL SUCTION & DISCHARGE HOSE

IS 10733 Tube: Specially compounded oil resistant synthetic rubber Reinforcement: High tensile synthetic piles with helix steel wire and a copper wire Cover: Black smooth fabric mark NBR rubber compound resistance to oil, fuel, weather & ozone & abrasion Properties: Seamless, Uniform Thickness, Flexible, Very Strong Standard length: 20 mtr and 40 mtr Temperature Range: -26°C to +85°C Approx

IS:3549 /1983 Type 2 Application: For dewatering and delivery purposes during reflooding, handling for waste water, sewerage and mud at maximum working pressure of 0.7,1.0 and 1.5 MPa. TYPE: Hose having smooth bore. LINING: Natural/Synthetic/blend rubber compound lining for the water and abrasion resistance. REINFORCEMENT: Reinforcement for the rubber bias at approx. 45" angle combination impregnated woven textile applied on with galvanized steel wire. COVER: Corrugated cloth marked finish outer cover made from natural rubber compound resistance to water, sunlight, UV rays, ozone, abrasion etc. PRESSURE: W.P. of 0.7MPa & min. B.P. of 2.1 MPa., W.P. of 1.0 MPa. & min. B.P. of 3.0 MPa., W.P. of 1.5 MPa & min. B.P. of 4.5 MPa. W.P. : Working Pressure, P.P. : Proof Pressure, B.P. : Burst Pressure, 1MPa : 10.2Kgf/Cm2 1Kgf/Cm2:100KN/m2

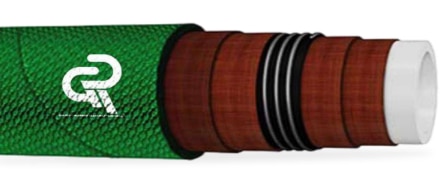

Core: White color, Synthetic rubber with XLPE liner Reinforcement: High Tensile Synthetic Textile Cord with steel helix and 2 cross anti-static wire Cover: Green color EPDM, wrapped type, abrasion and weather resistant Application: Excellent in handling petroleum based products, hydrocarbon solvents, oxidizing chemicals, major strong acid and alkali as well as organic fluid etc. Temperature Range: Continuous: -20°C to +120°C
