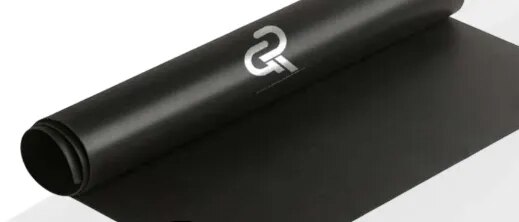

Electrical Insulating Mat Is 15652:2006

- Scope – Covers plain, perforated and ribbed mats for indoor use on floors, platforms and work‑benches.

- Material – Natural or synthetic rubber, free from cracks, pinholes or foreign matter; must be oil‑ and ozone‑resistant.

- Thickness – Standard sizes: 3 mm, 4 mm, 5 mm, 6 mm (other thicknesses on request).

- Voltage Rating – Tested for 1 kV AC (50 Hz) for 1 minute; dielectric strength ≥ 10 kV/mm.

- Dimensions – Common sheet sizes: 1 m × 2 m, 1 m × 3 m; tolerances ± 2 % on length/width.

- Physical Requirements –

- Tensile strength ≥ 5 MPa

- Elongation at break ≥ 200 %

- Hardness (Shore A) 55–70

- Abrasion loss ≤ 200 mm³ (per 1000 cycles)

- Safety Markings – Each mat shall bear:

- IS 15652 : 2006 logo

- Manufacturer’s name & batch number

- Thickness & voltage rating

- Date of manufacture & expiry (if applicable)

- Testing – Must pass dielectric, tensile, hardness, abrasion and ozone‑resistance tests as per the standard.

- Packaging – Rolls or sheets wrapped in moisture‑proof material; each package labelled with specification details.

Typical Use Cases

- Electrical substations & switchgear rooms

- Workshops & laboratories

- Home DIY areas with low‑voltage equipment
